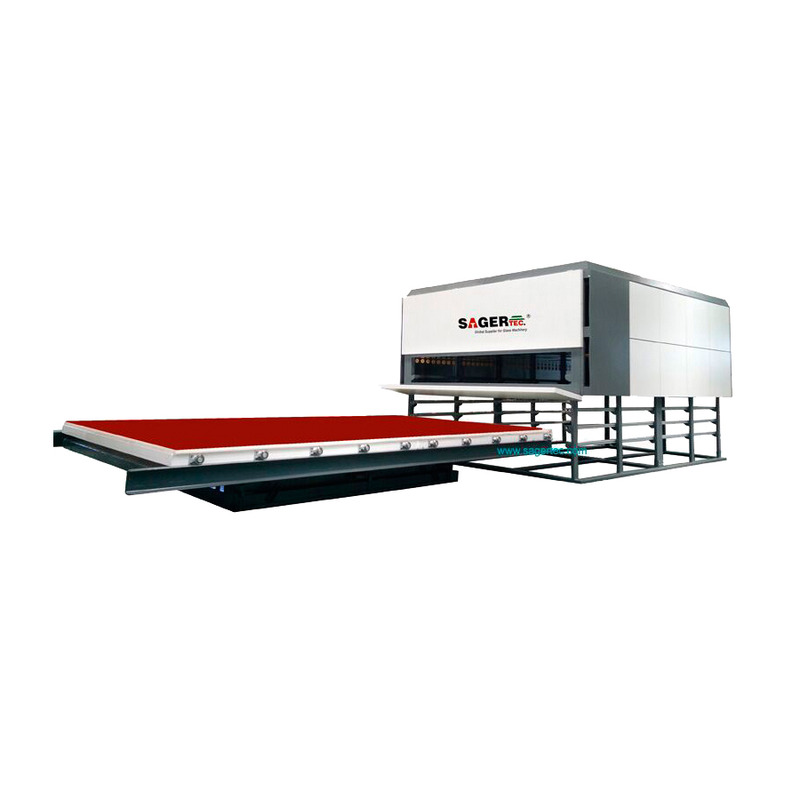

Building Material Stores PVB / EVA Glass Laminating Machine Without Autoclave

1.0 Sets
MOQ
Building Material Stores PVB / EVA Glass Laminating Machine Without Autoclave
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Applicable Industries: Building Material Shops
Showroom Location: Brazil
Condition: New
Machine Type: Glass Laminating Machine
Production Capacity: 64 square/day
Voltage: Customized
Power: 73.1kw
Dimension(L*W*H): 4000*2700*2000mm
Weight: 2 kg
Warranty: 1 Year
Key Selling Points: Easy to Operate
Glass Thickness: 50mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC
Item: EVA glass laminating machine
film: EVA, SGP, TPU PDLC film
max size: 2000*3200mm
max thickness: 50mm
layer: two
Operation: Siemens PLC control
Βασικές πληροφορίες
Πληρωμής & Αποστολής Όροι
Packaging Details: suitable for ocean shipping
Supply Ability: 15 Set/Sets per Month
Περιγραφή προϊόντων

Two Doors Glass Laminating Machine

Description &Technical Reference

SG-3000-2DD EVA glass laminating machine is a professional equipment to produce laminated glass without autoclave.

It is able to produce various laminated glass thanks to the advantages of this machine and specific film. You can insert silk,

paper, plastic film, metal mesh, fabrics, PDLC film SGP film into normal and tempered glass sheets by using the EVA

film, in order to produce decorative and functional laminated glass, bending glass in one step or muti-step processing.





Max.glass size(mm)

Vacuum bag(set)

Max.glass thickness(mm)

Heating time(minute)

Power

(KW)

Diamention

(mm)

SG-3000-1DD

1800*3000

2

50

20

36

  7260*3630*1490

SG-3000-1SD

1800*3000

1

50

20

36

5445*3630*1490

SG-3000-2DD

2000*3200

4

50

30

72

8414*2810*2150

SG-3000-2SD

2000*3200

2

50

30

72

8414*2810*2150

SG-3000-3SD

3700*2500

3

50

90

35

9600*4000*2260

SG-3000-4SD

3700*2500

4

50

90

36

9600*4000*2260

SG-3000-5SD

3700*2500

5

50

90

36

9600*4000*2260





Layout

Application

Material Insert: Metal mesh, paper, LED, fabrics, silk , PDLC,SGP, TPU,EN or other film etc.



Machine details



Easy operation for new user



1.Siemens PLC control and digital display for option

2.Most of Schneider electrics

3.Equip with smart program, easy operation for new user.

4.Special design with two steps processing, 99%Yield



Fast and  stable vacuum degree



1.Patent technology,Vacuum provides stability

The vacuum pump consists of four parts, vacuum pump, buffer tank, air filter and oil-water separator.



2.Buffer tank function even suddenly power off, it can not effect the vacuum.









Two waorking station saving time



Double doors can be controlled pneumatically by touch screen.

Single and double working section can be optional.



Machine processing



All metal sheets used on the equipment are processed by laser cutting, the main body of the machine is welded with high-quality steel and processed by CNC gantry milling, and the mechanical parts are processed by CNC machining center.



Certification



After sale service

  • One year guarantee for whole machine.
  • 24 hours technical support by e-mail.
  • Ues-friendly English software,user manual and detailed Videos/CD.

  • We will provide all spare parts needed for maintenance of the equipments.

  • Profrofessional after-sales service team support face-to-face trainning and installation to customer's factory.





Company Profile

Sagertec. Established in 2008, a professional manufacturer and exporter that is concerned with design, development and production of glass processing machinery.

Main Products including: PVB glass laminating machine, EVA glass lamination furnace, PVB/EVA glass lamination line, glass edge polishing machine, glass washing machine , glass drilling machine etc.
